Schemata is a Schematic Entry System – use it to draw and simulate electrical schematics. Schemata is not a prototype or PCB board design tool – it is a capable Analog IC design tool that can be used with most FAB semiconductor processes. The current version performs Spice simulation using Simucad’s SmartSPICE program to which it connects using low level Window’s functions (you need never see the SmartSPICE window) just point and click. Schemata is intimately connected to other MS Windows – all common cut, paste operations etc are supported.
Schemata supports interfaces to LVS/DRC via LVS netlists, it reads StarRC layout files and provides post layout simulations and back annotations. It is however only an Analog Design tool – use it for complex analog cells. Schemata is not compatible with any other design tools. Schemata does however write all the standard netlist formats (.sp, .cdl . etc) including a very nice Verilog format so you can still use it. You can certainly use Schemata to learn about analog design – it is extremely effective at rapidly developing and testing analog cells. When you become familiar with Schemata you will find you can draw a new op-amp, plot response measure settling time and bandwidth in minutes if not in fact in seconds.
Schemata has a huge number of features – two particular highlights are:
To view the complete list of features, see here

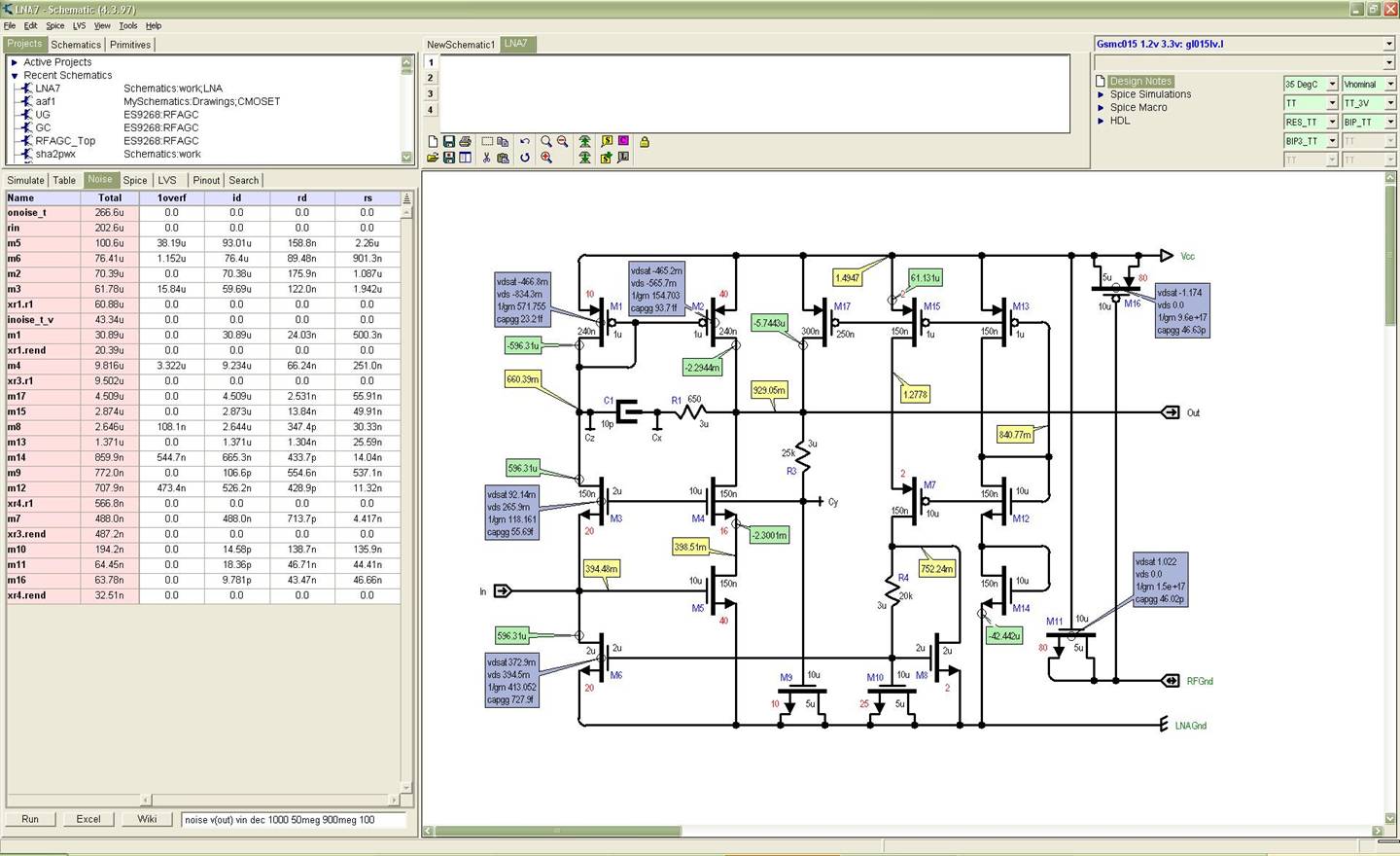

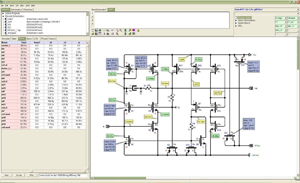

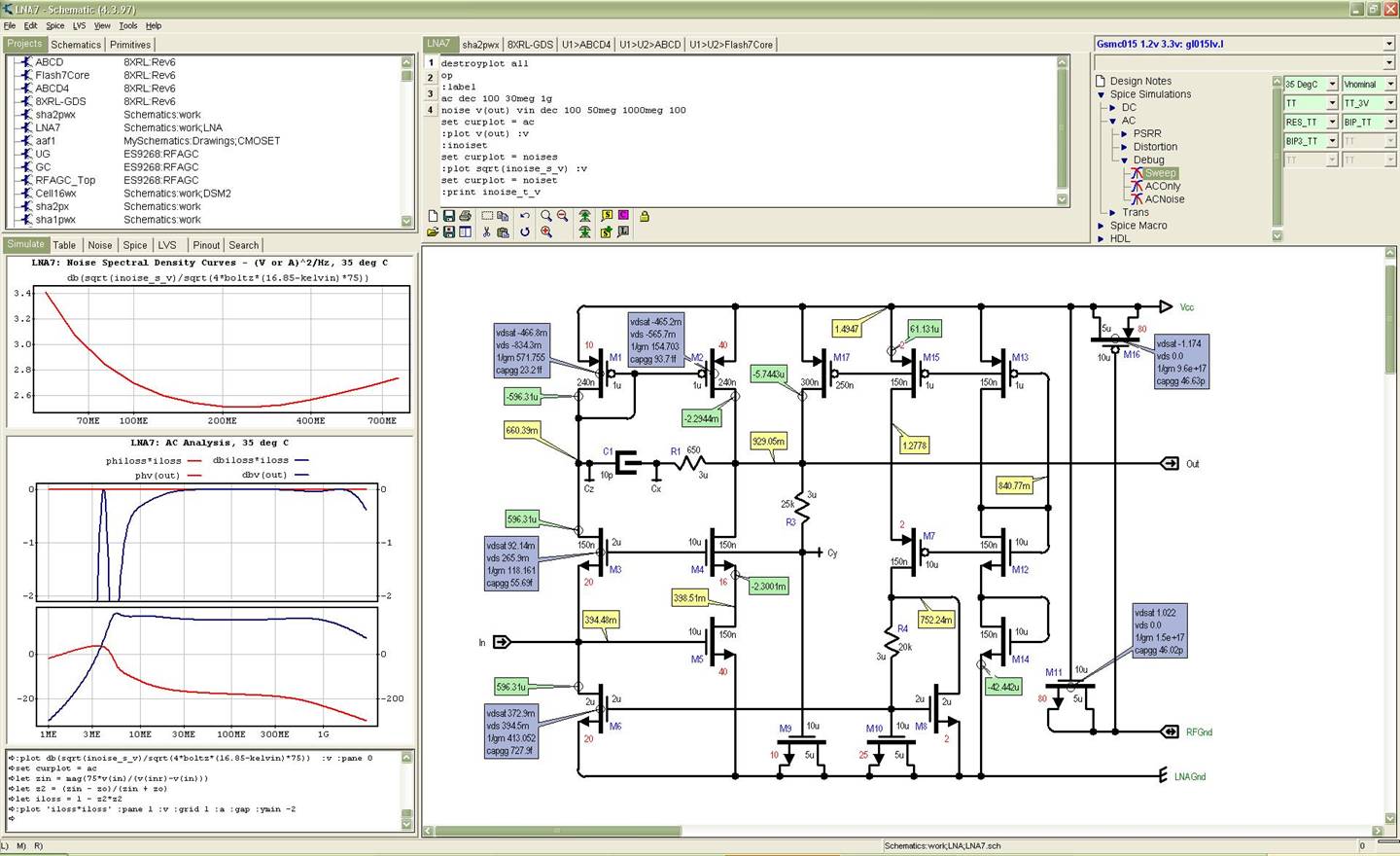

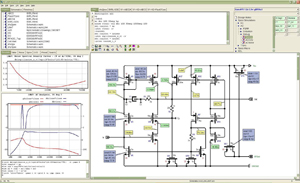

|Figure 1, Spice commands are executing in the bottom left window, the graphs show the results. Note the annotation of the operating points. The outline on the top right shows the simulation – we in one of the debug simulations in the AC tests of the device. The actual script running is shown in to the window above the schematic.||Figure 2, A click on the “noise” tab shows the noise contribution of individual devices.|

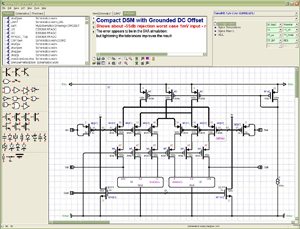

Figure 3, A slightly different configuration can be used when drawing the schematic – here the primitives are available to drag from a table on the left… note the transparent icon X1.

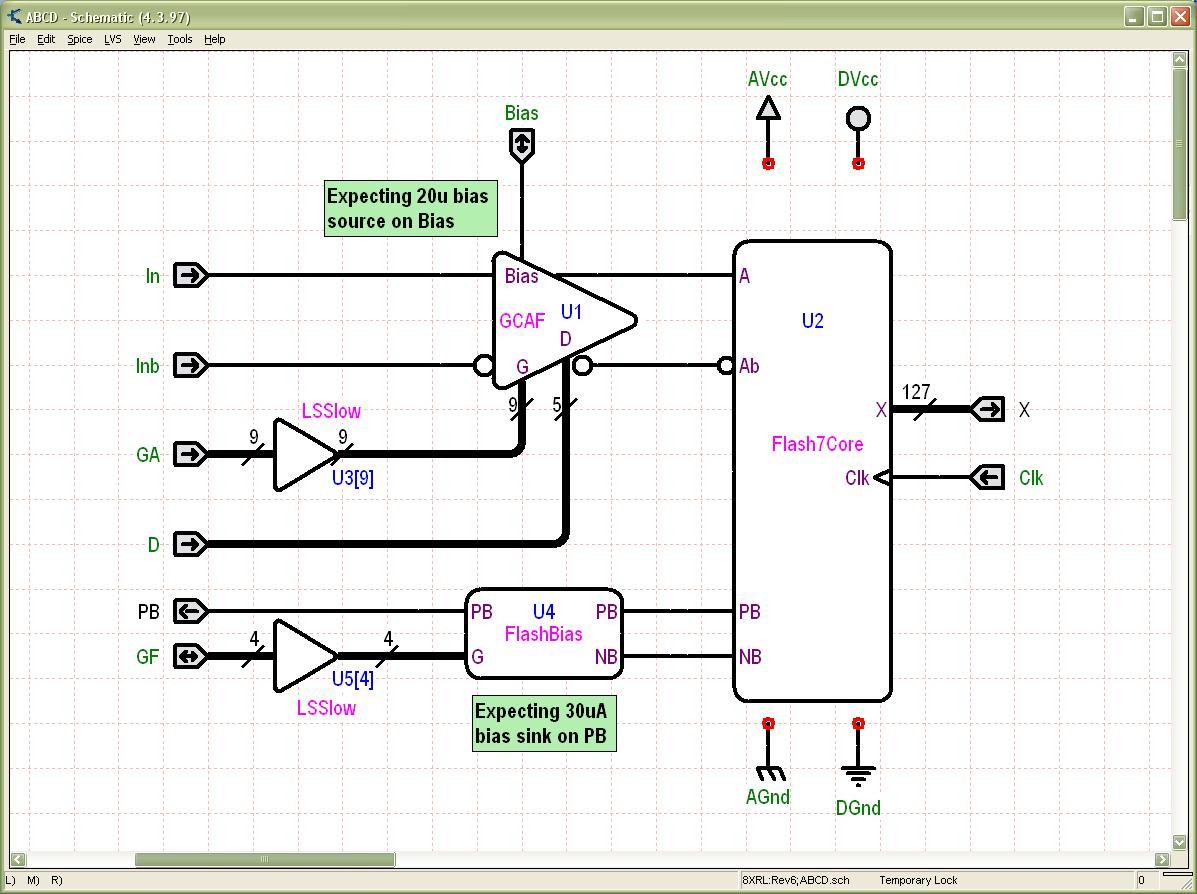

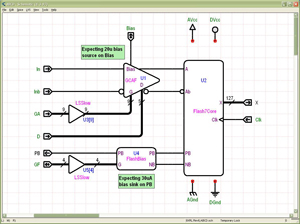

Figure 4, It is possible to work in a mode where the whole window is the schematic – this helps when reviewing a large design.
For additional information, please see the ICanCAD Schemata Sourceforge site
"Allegro CL is outstanding in its ability to deliver flexible, extensible, and yet always backward compatible tools. It allows the ICanCAD system to be stable enough to hold a repository of valuable Intellectual Property, and yet sufficiently cutting edge to support the most innovative design engineers. Allegro CL brings the full power of LISP to the engineer/design tool interface: this allows the skills of the most innovative engineers to be captured and dispersed to all engineering groups to enhance the business success of the company."
Martin Mallinson, ICanCAD Schemata Developer
"Allegro CL provides an extraordinary environment for rapidly prototyping new designs, circuits and ideas. The fact that the behavior of Schematic can be edited on the fly, via the built-in Lisp prompt, provides an unprecedented ability for the design engineer to customize the tool to suit their needs."
Montana Reid, ICanCAD Schemata End-User
