Allegro CL version 8.2
This page is new in 8.2.

Stepper Dialog

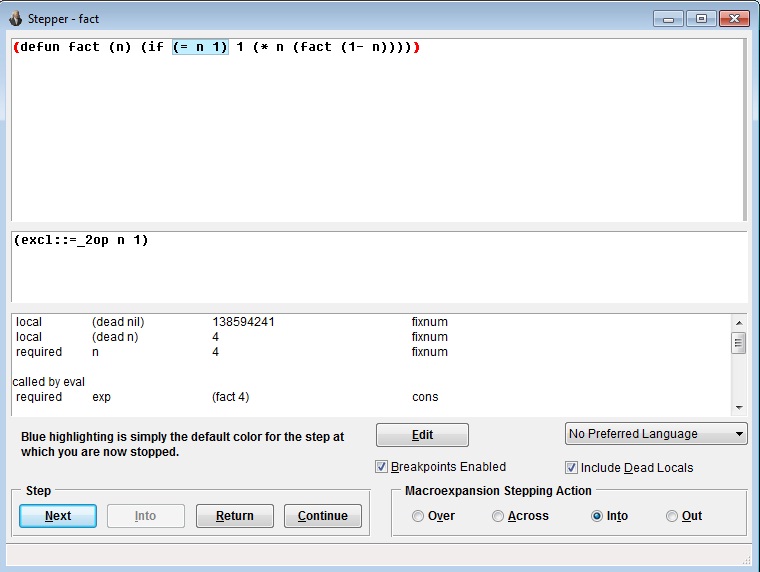

The Stepper Dialog allows carefully testing compiled code by interrupting execution at selected forms in the original source code and at macroexpansions of the code, allowing state to be examined at each stop point. The illustration shows the Stepper Dialog stepping through the fact function, which calculates a the factorial of its argument. The definition of fact is shown as described below.

The dialog displays the original lisp source code for a function or method that is being stepped through, highlighting the form at which the stepper is stopped. Button widgets allow proceding in various ways each time execution has been interrupted. The dialog also displays macroexpanded forms and the values of arguments and local variables, updated after each step. The IDE's code editor can be invoked at any time on the code being stepped through.

The dialog is implemented on top of the base lisp's stepping facility, which also has a simpler textual interface that can be used in a lisp listener. See The Lisp DeBug (ldb) stepper and The source stepper, both in debugging.htm.

In the IDE, stepping will be done in the Stepper Dialog if it is present when a breakpoint is hit, and otherwise textual stepping will be done in the listener. The Stepper Dialog is present if it has been shown by using the Run | Stepper Dialog command and has not been closed or iconized more recently, and so it is still present if it is simply buried by other windows. (It's recommended that you do not show or close the Stepper Dialog while stopped at a step, or these two modes may become confused.)

Setting Up a Stepping Session

In order to successfully step through source code, it's important to do some setup in the right order. Here are the general steps, as it were, for setting up source-level stepping:

  1. Show the Stepper Dialog with the menu bar command Run | Stepper Dialog.
  2. While the Stepper Dialog is present, use IDE menu bar commands to compile and load some code to test. These commands include Compile and Load (for a file), Tools | Full Compile (for the current project), and Tools | Incremental Compile (for a single definition in the editor). Using an IDE compilation command while the Stepper Dialog is present ensures that the necessary debugging information is available for doing source-level stepping.

    One caveat: Compile and Load does not recompile the code if there is an up-to-date fasl file. To ensure recompilation, you could use Compile followed by Load. Or first save a buffer in the editor to ensure that the fasl is no longer newer, and then use Compile and Load. Status bar messages will indicate when compilation was really done.

    Advanced explanation: The actual requirement is for particular compiler switches to be enabled when the tested code is compiled. This is done automatically when using IDE commands while the Stepper Dialog is present, but you could alternately manage the compiler switch variables yourself. All of the needed switches will be true if the general debug optimization level is 3, as with (declaim (optimize (debug 3))). The individual switch variables include save-source-level-debug-info-switch for source-level stepping, along with save-arglist-switch, save-local-names-switch, and save-local-scopes-switch in order to display local variable names and whether each variable is currently "dead" and so on.

  3. Add breakpoints to one or more functions or methods by using the Run | Set Breakpoint menu command. To do this, first place the text cursor onto the name of a function in the editor (or elsewhere in the IDE) and then invoke the menu command. A message in the status bar at the bottom of the IDE will mention that a breakpoint has been added. The keyboard shortcut for the command is F7, so you could for example begin typing a call to a test function in the Debug Window, pressing F7 just after typing the name of the function to breakpoint it, and then typing the rest of the expression and evaluating it.

    If the selected function name is a generic function, then a pop-up menu will appear where you can select the particular method to breakpoint. The special All choice at the top of the menu will breakpoint all methods. Another way to breakpoint a particular method is to use the Definitions dialog on a generic function, then select one of its methods in the dialog's list and invoke Run | Set Breakpoint.

  4. With the Stepper Dialog still present, run some test code that calls one of the breakpointed functions. A break should occur and bring the stepper dialog to the front with information about the function. You are now ready to step through the definition that is shown, as described below.

Doing the Actual Stepping

After the setup above, if you see the Stepper Dialog with a lisp form in the second pane from the top, then you have successfully initiated source-level stepping, and can proceed stepping through the definition that's shown. If you instead see an assembly language form in the second pane, then review the instructions above for setting up source-level stepping.

The three content panes are unlabeled to save space, due to the typically large amount of content. Here are brief descriptions for now: The uppermost pane of the dialog (the Definition Pane) shows the entire definition that is being stepped through. The second pane from the top (the Form Pane) shows the form at which the stepper is currently stopped. The third pane (the Stack Pane) shows the arguments and local variables of the function that is being stepped through.

Here is the general procedure for stepping through code:

The Definition Pane

The Definition Pane (at the top of the dialog) shows the source code for the function or method that's currently being stepped through. This is a copy of the real source code text, complete with comments and original line breaks. The form at which the stepper is currently stopped will be highlighted with a different background color. The meaning of the various colors is covered in a separate section below. Red parentheses are drawn around any breakpointed forms.

The breakpointable form under the mouse (if any) in the Definition Pane will have a blue border drawn around it; this is the "selected object" in the pane to which commands on the right-button shortcut menu will be applied. Even keyboard shortcuts from the IDE's menu bar can be applied to the highlighted form. If the mouse is not inside the Definition Pane, then the form at which the stepper is stopped is the selected object to which IDE commands will be applied.

The Form Pane

The Form Pane (second from the top) shows just the form at which the stepper is currently stopped. This form would be executed by a subsequent Step Next. Sometimes this is a form in the original source code, and is the same as the highlighted form in the Definition Pane, and at other times it is all or part of a macroexpansion. This form is shown pretty-printed by the lisp printer, and therefore is typically more compact than the highlighted form in the Definition Pane even when they are the same form. You could click on a symbol in this pane and then apply IDE menu bar commands to it, for example, as in the editor.

The Stack Pane

The Stack Pane (third from the top) lists the arguments and local variables of the function that is being stepped through, followed by the arguments to the function that called the function being stepped, and then by the arguments to the next calling function. When a new function is first stepped into, the arguments are listed first, whereas on subsequent steps the local variables are listed first; this is done so that the most pertinent information at each step is more likely to be visible when the Stack Pane remains scrolled to the top.

Whenever the value of a local variable changes during stepping, the new value will appear in this list immediately. A new variable value (and the variable name) will be shown in red text, with the previous value displayed beside it in parentheses, and the variable will be scrolled into view automatically. (When multiple variables have changed, only the first one may be scrolled into view.)

A new variable value will not be updated in this list if it is being held in a register for efficiency, rather than being stored in the variable's official location on the stack. You may see it updated here later if the new value is eventually moved to the stack, perhaps when the value is actually used.

You can click on a line of text in the Stack Pane (third from the top) to select the value of an argument or local variable. Then (as usual in the IDE) you can invoke any command on the IDE's menu bar on the selected argument or variable value; this will do something if that command makes sense on that kind of value. Or right-click a value to see a pop-up menu of suggested commands for that kind of value. Or double-click a value to inspect it in the IDE's Inspector.

When the Include Dead Locals check box is checked, as it is by default, then the Stack Pane displays all local variables. When it is unchecked, variables that are "dead" at the current step are excluded from the list. A dead variable is one whose current value will no longer be used as the execution of the current function proceeds (though it may later be set to another value that will be used).

The Highlighting Colors in the Definition Pane

The form in the Definition Pane at which the stepper is currently stopped is drawn with a background color that can have different meanings. An explanatory note will appear in the dialog the first three times each highlighting color is used.

When the highlighting is blue, this is simply the default highlighting color that is used when none of the special colors below are in effect.

When the highlighting is green, it means that source-level debugging information is available for the function that the highlighted form will call. This is a "green light" that pressing the Step Into button will continue doing source-level stepping. The called function would then replace the calling function in the Definition Pane.

When the highlighting is orange, it means that you are stopped at a macro form. The next step may be affected by the current choice in the Macroexpansion Stepping Action group at the lower right of the stepper dialog. See the notes that are shown in the dialog's status bar as you move the mouse over those choices.

When the highlighting is gray, it means that no source code range is known for the current step point. The previously-highlighted form remains highlighted simply as a general landmark. Typically the higlighted code will be a macro form that you are still somewhere inside, but execution may actually be at some point beyond the gray highlighted form.

Scrolling the Three Content Panes

Whenever the Definition Pane at the top has the keyboard focus, each of the three panes that display information may be scrolled with the keyboard using the usual vertical scrolling keys (PageUp and PageDown, Home and End, and the up and down arrow keys). If no shift keys are held down, then the Definition Pane is scrolled. If the shift key is held down, the Form Pane is scrolled, and if the control key is held down, the Stack Pane is scrolled.

Whenever execution stops at a step and the Stepper Dialog is selected, the keyboard focus is moved to the Definition Pane to facilitate scrolling the three content panes in this way.

Text Search

When either the Definition Pane or the Stack Pane has the keyboard focus, Search | Find Forward (from the IDE's menu bar) can be used to search the pane for an arbitrary string, and then Search | Find Again may be used to find subsequent matches.

In the Definition Pane, Search | Find Forward will always start at the top of the definition. A string match will be highlighted with a light red background.

In the Stack Pane, Search | Find Forward will always start at the top of the list. Only variable names are searched for string matches. A line with a matching variable name will be selected.

Pressing the Tab key in either of these panes will move the keyboard focus to the other pane. A vertical gray bar is drawn just inside either of these pane's scrollbar when it has the focus.

Assembly-Language Stepping in the Stepper Dialog

If breakpoints are added to functions for which source-level debugging information is not available, and the Stepper Dialog is present when the breakpoints are hit, the Stepper dialog will still display some information and allow stepping to be done. The Definition Pane will still display the function source if the usual "source file information" is available, but will not highlight forms for the current step because they are not known. The Form Pane will display an assembly language form rather than a lisp form. And the Stack Pane will still display local variable values.

The Preferred Language Combo Box

The Preferred Language Combo Box can be used to specify the language in which you would like to do stepping. The default setting is No Preferred Language, which will map to the highest-level language that pertains to the code being stepped. If you select Asm, then stepping will be performed at the assembly language level even where lisp source-level information is available. (Stepping through other languages such as Python may be possible in the future.)

When changing this setting, existing breakpoints will still be stepped in the language that was current when those breakpoints were added. You would need to delete and re-add those breakpoints to use them with the newly-selected language.

Macroexpansion Stepping Action radio buttons

The Macroexpansion Stepping Actions radio buttons at the lower right specify what action to take when encountering a macro form. The choices are

Running the mouse cursor ove rthe choices displays documentation in the dialog status bar at the bottom of the dialog. The top-level command :help step typed to a Listener prompt will also provide documentation.

Stretching the Content Panes

The dialog has two split-bar widgets for adjusting the relative size of the three content panes. When the resizing mouse cursor appears as you move the mouse between the panes, click and drag to adjust the sizes.
