Allegro CL version 8.1
Minimally revised from 8.0. Minimal update since 8.1 release.
8.0 version

International Character Support in Allegro CL

This document contains the following sections:

1.0 Introduction
2.0 Internal Representation
   2.1 History
   2.2 Unicode
   2.3 Memory Usage
   2.4 Character names
3.0 External formats
   3.1 External-Format Overview
      3.1.1 Basic External-Format Types
      3.1.2 The unicode and fat External-Format Types; the unicode BOM
      3.1.3 Composed External-Formats
      3.1.4 Defining External-Formats
      3.1.5 Retrieving Existing External-Formats
      3.1.6 External-Format Runtime Mode
   3.2 External-Format Usage
      3.2.1 Streams
      3.2.2 String <-> External-Format Lisp Arrays
   3.3 External-Formats in 8-bit Lisp.
   3.4 Older Allegro CL External-Format Compatibility
4.0 Foreign-Functions
5.0 External formats and locales
   5.1 The initial locale when Allegro CL starts up
   5.2 Locales in applications
6.0 Localization support in Allegro CL
   6.1 Introduction to locales
   6.2 Locale Definition
   6.3 Locale Attribute Accessors
7.0 String collation with international characters
8.0 Earlier International Allegro CL Compatibility
   8.1 EUC Module
   8.2 :mode Option Removal
Appendix A. Functions, Symbols, Variables Documentation
   Appendix A.1. External-Format API
Appendix B. #\newline Discussion
Appendix C. 8-bit images
Appendix D. Links to Unicode Reports


1.0 Introduction

The International Version of Allegro CL, which uses 16-bit characters, is the standard version. The older, non-international version remains available to Allegro CL users, as described in Appendix C 8-bit images.

The 16-bit character versions of Allegro CL allows for universal character representation and character Input/Output that is more flexible than that available with previous Allegro CL releases.

Note on examples with non-ASCII characters: This document contains some examples with non-ASCII characters to illustrate Allegro CL's ability to represent them. These examples are displayed using JPEG pictures, and therefore you cannot cut and paste them, as you can with examples containing only ASCII characters.



2.0 Internal Representation


2.1 History

In Allegro CL versions 5.0.1 and earlier, the standard, non-international, 8-bit version of Allegro CL represented characters internally using 8-bits per numeric character code. In Allegro CL, English letters and punctuation characters are represented using the ASCII character set. Several non-ASCII characters in 8-bit extended character sets, including the ISO-8859 series of character sets, define numeric codes for non-English/non-ASCII characters. Although non-international Allegro CL does not provide specific support to 8-bit extended character sets, all 8-bit character codes are representable in non-international Allegro CL.

The International version of Allegro CL was originally developed to support Japanese characters of which there are too many to represent using the standard 8-bit per character code model. Starting with Release 6.0, Allegro CL is extended to support all international characters (i.e., Asian, European, etc.) by using 16-bit Unicode as the internal character representation model. The Unicode standard is used as the internal representation model for the Windows NT/2000 Operating System as well as the Java programming language.

The International version of Allegro CL has the feature :ics on the *features* list. The non-International version does not have that feature.


2.2 Unicode

Each character, be it a letter, Chinese ideograph, Korean Hangul, punctuation mark, or other glyph, has a unique numeric Unicode representation value. Please visit the Unicode Web site (www.unicode.org) for more information on the Unicode standard. We provide a basic description of Unicode in this document.

The characters from the Latin-1 (aka ISO 8859-1) character set, a 256 character (i.e., 8-bit) superset of the ASCII character set, have the same values in Unicode as they do in Latin-1. This provides convenient compatibility for programs which depend on numeric character codes strictly within the Latin-1 range.

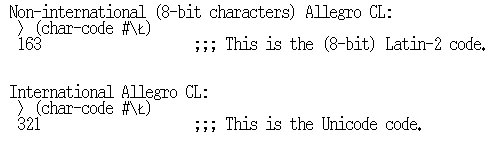

Characters from other sets, however, may have different values in Unicode. For example, the Latin-2 character "Latin Capital Letter L With Stroke" has value #xa3 in Latin-2 (ISO 8859-2), but has value u+0141 in unicode [we use the 'u+xxxx' convention here for describing unicode values; 'xxxx' is in hexadecimal format]. Thus, programs which depend on character code values of non-Latin-1 characters may need to be examined and possibly updated to operate with Allegro CL. Users with existing Allegro CL programs who do not wish immediately to update their programs will be able to use the non-international, 8-bit character based, Allegro CL which does not use Unicode to represent characters.

Note that, as described later in this document, conversions from external format encodings, such as Latin-2, happen automatically during Lisp Input/Output. Thus, the only areas where user code is likely to be affected by differences between internal character representation among non-international and International Allegro CL are places where the Lisp functions char-code and code-char are called directly on non-Latin-1 characters. For example, using the Latin-2 character "Latin Capital Letter L With Stroke", the following sessions show the differences:


2.3 Memory Usage

Internally, all Lisp strings are represented as arrays of Unicode character codes. Each array element is exactly 16-bits wide, even if the string contains only 7-bit ASCII characters. This widening of strings causes a memory usage increase. However, since almost all initial Allegro CL strings are stored in memory-mapped files, the initial runtime memory usage difference between International Allegro CL and non-international Allegro CL is less than 5%. Users wishing to deliver applications with their (read-only) strings in similarly memory mapped files can use the :purify option to generate-application. Please see delivery.htm for more information.


2.4 Character names

Lisp characters can be represented using the `#\[name]' syntax, where [name] is the character's Unicode name. Since the Unicode naming convention uses spaces in character names, and since the Lisp character reader treats space as a token delimiter, #\_ (underscore) characters are used to act as spaces in the Unicode name. For example, the following shows the unicode name for u+0141:

 > (code-char #x0141)
 #\latin_capital_letter_l_with_stroke

 > (format t "u+~4,'0x" (char-code #\latin_capital_letter_l_with_stroke))
 u+0141

Not all Unicode characters have names. In particular, most CJK (Chinese/Japanese/Korean) characters are unnamed. If you are using Mule or the Allegro CL IDE to enter Japanese characters, though, you can name the characters directly:

Character names specified in ANSI Common Lisp are also recognized. Thus, some characters have more than one name in Allegro CL:

 > (format t "u+~4,'0x" (char-code #\latin_capital_letter_a))
 u+0041

 > (format t "u+~4,'0x" (char-code #\A))
 u+0041


3.0 External formats

As described above, International Allegro CL characters and character strings are represented internally using the Unicode standard with each character occupying exactly 16-bits per character code. Externally, however, and outside of Allegro CL's control, most non-ASCII characters are stored in variable-width multi-byte models using any one of several different representations.

For example, there are several common ways to represent Japanese characters, and most of these encodings specify that ASCII characters (which are non-Japanese) occupy a single 8-bit byte each, whereas Japanese characters may occupy two or three 8-bit bytes each depending on the character and the encoding.

Allegro CL provides stream-level and foreign-function call-level automatic translation between Unicode and several of these external formats. We describe how external-formats are used in this section as well as how users can define their own Unicode to External Format translations for their own external formats.

In the simple-stream implementation used by Allegro CL (see streams.htm), the basic unit is an octet, which is an 8-bit byte. Reading and writing functions work with octets. In this document, we typically describe behavior on octets.


3.1 External-Format Overview


3.1.1 Basic External-Format Types

The simplest external-format is for the Latin-1 character set. This is the external-format used when the default locale (sometimes known as the "C" or "POSIX" locale) is being used. For input, the Latin-1 external-format translation simply takes the next input octet and forms a Lisp character from the single octet's numeric value. For output, the external-format takes the Lisp character's code, and uses, as its octet output, the character code value. If the Lisp character code value is greater than 255 (i.e., what can be represented as a Latin-1 octet), then the ASCII value for question-mark (== 63) is used as the output octet. Thus question-marks appearing in Latin-1 output can indicate places where non-Latin-1 characters are used.

The next simplest class of external-formats are the 8-bit character sets, such as for any of the ISO-8859 sets. (The Latin-1 case described above is actually ISO-8859-1). For these external-formats, each Lisp character corresponds to one octet. (A special case exception is the #\newline case described below.) For the non-Latin-1 external-formats, the translation is generally done by fast table lookup. The following are the names and nicknames for the 8-bit external-formats supplied with Allegro CL:

 Name            Nicknames                      Comments
 ----            ---------                      --------
 :latin1         :ascii, :8-bit, :iso8859-1, t
 :1250                                          For MS Windows
 :1251                                          For MS Windows
 :1252                                          For MS Windows
 :1253                                          For MS Windows
 :1254                                          For MS Windows
 :1255                                          For MS Windows
 :1256                                          For MS Windows
 :1257                                          For MS Windows
 :1258                                          For MS Windows
 :iso8859-2     :latin-2, :latin2
 :iso8859-3     :latin-3, :latin3
 :iso8859-4     :latin-4, :latin4
 :iso8859-5     :latin-5, :latin5
 :iso8859-6     :latin-6, :latin6
 :iso8859-7     :latin-7, :latin7
 :iso8859-8     :latin-8, :latin8
 :iso8859-9     :latin-9, :latin9
 :iso8859-14    :latin-14, :latin14
 :iso8859-15    :latin-15, :latin15
 :koi8-r

The following are special external-formats not listed above:

The general class of external-formats are for the variable-width multi-byte character sets often used for Asian languages. As described above, a single Lisp character may be represented externally using several external-format octets. The external-format conversion routines consume octets on input or generate octets on output, and may use table lookup for translation to/from Lisp characters. The following are the names and nicknames for the multi-byte external-formats supplied with Allegro CL:

 Name            Nicknames                      Comments
 ----            ---------                      --------
 :utf8           :utf-8
 :big5
 :gb2312
 :euc            :ujis
 :874                                           For MS Windows
 :932                                           For MS Windows
 :936                                           For MS Windows
 :949                                           For MS Windows
 :950                                           For MS Windows
 :jis
 :shiftjis

See Section 3.1.2 The unicode and fat External-Format Types; the unicode BOM for external formats that are exactly two bytes wide.


3.1.2 The unicode and fat External-Format Types; the unicode BOM

Some external formats use precisely two bytes (16 bits) per character. These include :fat (big-endian), :fat-le (little-endian), and :unicode. These external formats are similar, but :unicode follows unicode byte-ordering conventions. In particular, when a stream is first opened with the unicode external-format or when a stream's external-format is changed (via (setf stream-external-format)) to the unicode external-format, the unicode byte-order-marker is used in the following way:

BOM and UTF-8

The Unicode BOM (Byte Order Mark) is not generally used in utf-8 encodings since such encodings are independent of the possible byte orderings used when serializing text to series of octets.

The BOM, U+feff zero width no-break space, converts to the following octet sequence in utf-8:

 #xef #xbb #xbf

3.1.3 Composed External-Formats

The most abstract of external-formats in Allegro CL are the "composed" or "composing" or "wrapper" external-formats. (The terms "composed external-format" and "composing external-format" are used interchangeably in Allegro CL documentation.) Unlike the basic external-formats described above, which translate between Lisp characters and octets, a composing external-format provides translations between Lisp characters and (other) Lisp characters. Thus, a composed external-format is created by combining a composer, which is a character-to-character convertor with a composee, which is a character-to-octets convertor.

There are two types of composing external-formats in Allegro CL, macro-based and encapsulating-stream-based. The macro-based composing external-formats were introduced in Allegro CL 6.0 and are the type of composing external-formats created by the compose-external-formats macro. The function find-composed-external-format, introduced in Allegro CL, can be used to compose either macro-based or encapsulating-stream-based composing external-formats.

Defining a macro-based composing external-format involves defining the convertor macros (described later in this document) using calls to the composee external-format's convertors. The macros are then combined using compose-external-formats (or to the function find-composed-external-format, which uses the compose-external-formats macro).

An encapsulating-stream-based composing external-format works on a stream by internally converting that stream into an encapsulating stream. The base stream of the encapsulation uses the macro-based composee external-format. The encapsulator stream operates by converting the characters received from or sent to the base stream.

The most widely used composed external-format, named :e-crlf, is an encapsulating-stream-based composing external-format, and is used to convert the Common Lisp #\newline character from/to the combination #\return #\linefeed combination. The :e-crlf external-format is used by default on the Windows platform where the textual convention is to end each line (regardless of character set encoding) with the ASCII octets 13 and 10 which represent 'carriage return' and 'linefeed' respectively.

On the Windows platform, the default external-format used (that which is specified by the current locale, see Section 5.0 External formats and locales) is a composition of the :e-crlf external-format and the locale-specific base external-format. For example, on US English Windows, the default base external-format is called :1252-base (the 1252 names the "code page" name used by Windows for US English -- this character set is effectively the same as Latin-1). In this Windows environment, Allegro CL creates and uses as default the composed external-format (:e-crlf :1252-base). In other words, all Input/Output is filtered through a #\newline processor as well as base-level external-format. For Japanese Windows, where the default code page is 932 (corresponding to Japanese Shift-JIS), the base external-format is :932-base, and Allegro CL composes the :e-crlf external-format with the :932-base external-format to create (:e-crlf :932-base) as the Lisp's default external-format.

The :e-cr external-format converts ascii `carriage return' to/from #\Newline. Composing this external-format with a "crlf-base" external-format effectively turns this into an external-format for the Macintosh line-ending convention.

The function eol-convention allows determining and setting the end-of-line convention of a stream. The default eol-convention on the Macintosh is :unix. Thus Allegro CL does not automatically compose the `cr' external-format on Macintosh platforms as is done with the `crlf' external-format on Windows platforms. However, this is easily done by a programmer using eol-convention.

At Allegro CL startup time, when the global value of *locale*, is being set, the default external-format is set as the locale-external-format of *locale*. See also Section 5.1 The initial locale when Allegro CL starts up.

The changes made to Allegro CL 6.0 (and kept in later releases) regarding #\newline handling can, in some cases, cause compatibility problems for code that was explicitly handling multi-character newline terminations. The special composing external-format crcrlf is designed to work around these problems. See Appendix B #\newline Discussion below.

The function crlf-base-ef extracts the external format composed with the :e-crlf external-format or the :crcrlf external-format when passed such a composed external format.

Windows/Unix Portability Notes

Most external-formats supplied by Allegro CL are set up to be used portably in either the Unix or Windows environments by acting as aliases to appropriate lower-level "base" external-formats. This effect can be seen by evaluating find-external-format as follows (we have left out the addresses and you may see other differences in the printed representations):

;; On Unix/Linux:

(find-external-format :jis)
  ==> #<external-format :jis-base>

;; On Windows:

(find-external-format :jis)
==> #<external-format :crlf-jis-base)>
;; or
==> #<external-format ['(:e-crlf :jis-base)]>

The crlf-base-ef function can be used to return an external-format which strips out any composed crlf processing. Thus, on either Unix or Windows, the following result occurs (we have left out some of the information printed):

(crlf-base-ef (find-external-format :jis))
  ==> #<external-format [(crlf-base-ef :jis)]>

Note that while one can specify the name of a "base" external-format directly to find-external-format, this use is not recommended since not only is Windows/Unix portability potentially sacrificed, but also external-format autoloading may not properly occur when specifying "base" external-formats. Example:

;; The following only works if the :jis external-format
;; is already loaded (or autoloaded) into Lisp.
;;
(find-external-format :jis-base)

;; The following has the same effect as the preceeding
;; call, but it is more portable, and will also perform
;; any necessary external-format autoloading.
;;
(crlf-base-ef (find-external-format :jis))

3.1.4 Defining External-Formats

An external-format object is defined in Lisp. Many external-formats are pre-defined for and distributed with Allegro CL. Occasionally, new external-formats may be made available after a release, either as patches or as supplemental lisp files.

Users can define their own external-formats using def-external-format. Except for encapsulating composing formats, a complete external-format object includes translation macros specified by def-char-to-octets-macro and def-octets-to-char-macro. These macros are used internally by Allegro CL to fill code templates that use external-formats. Pre-filled versions of these templates can be built and stored as auto-loaded fasl files using the function generate-filled-ef-templates.


3.1.5 Retrieving Existing External-Formats

The find-external-format function takes as its required argument a name and returns the external-format whose name, or one of whose nicknames, matches the argument. When the argument is :default, find-external-format returns the external-format associated with *locale* (the current locale, see Section 5.0 External formats and locales). If the external-format cannot immediately be found as defined in the Lisp, then an attempt is made to autoload the external-format definition. The string "ef-" is concatenated with the string name of the argument and passed to the Common Lisp require function. This effectively means that a module named ef-[name].fasl, where [name] is the argument to find-external-format, is sought and, if found, loaded. Using autoloading in this way allows Allegro CL to have in memory only those external-formats and translation tables that are needed.

The find-composed-external-format function takes two external-format arguments, a composer external-format (either macro-based or encapsulated-based), and a composee external-format and returns their composition.

If you are preparing an application for delivery to another computer (using generate-application), and the application will likely use arbitrary external formats, it is best if you ensure the external formats can be found. The easiest way to ensure this is to specify the include-locales keyword argument (to generate-application) true. External formats can then be loaded when they are needed. The only ones that will be present in the application image file are the ones loaded during the image build.


3.1.6 External-Format Runtime Mode

An external-format lacking translation macro definitions is said to be in runtime-mode. This means that the external-format exists (i.e., can be retrieved with find-external-format), and other aspects of the external-format such as its nicknames can be retrieved, but unfilled code templates cannot be filled for that external-format. The reason one may want an external-format to be in runtime-mode is that if the code templates for an external-format have already been filled by, say, having previously used generate-filled-ef-templates, then the macro definitions and other structures needed by the macros at their expansion time can be deleted to save space. The def-ef-switch-to-runtime macro is used to name a function (or function object) that when funcalled clears structures used by the macros that are not needed when the external-format is in runtime mode. The Allegro CL switch-ef-to-runtime function switches an external-format to runtime mode.

When an external-format is autoloaded (see Section 3.1.5 Retrieving Existing External-Formats above), an attempt is also made to autoload the pre-filled external-format code templates. These pre-filled templates are stored in separate fasl files, usually with names that begin with 'efft-'. If the pre-filled templates are successfully loaded, then the just-loaded external-format is automatically switched to runtime mode.


3.2 External-Format Usage


3.2.1 Streams

The Lisp open function (and, analagously, load and compile-file) takes an external-format keyword argument argument. If this argument is not specified, a default external-format, based on the current locale (see Section 5.0 External formats and locales below) is used. (See cl:open in implementation.htm for a general discussion of the implementation of open but note all discussion of the external-format argument is here.)

When an operation requests to read an input character stream's next character, the stream's external-format template(s) will request one or more octets from the buffered stream device which it then translates into a Lisp character. Similarly, for writing Lisp characters via streams, the external-format is used to translate the Lisp character code in Unicode to the octet(s) specified by the external-format translation.

A stream's external-format can be changed at arbitrary times, using (setf (stream-external-format ...) ...). If it is changed to be an external-format for which readers/writers are not already built, the Lisp compiler is invoked to build a new associated reader/writer in the stream for that external-format. Since the external-format translation routines are defined using macros, the Lisp compiler is used to build new readers/writers, thus keeping runtime stream overhead from external-format processing to the bare minimum.


3.2.2 String <-> External-Format Lisp Arrays

When defining a new external-format, the string-to-octets and octets-to-string functions are a convenient way to test the conversion macros. These functions and the functions string-to-native and native-to-string take an external-format argument to specify how to convert between a Lisp string and a Lisp octet array.

For example, the following translates to the Shift-JIS external-format:

> (setq mb (string-to-octets (coerce '(#\hiragana_letter_a
                                          #\hiragana_letter_i
                                          #\hiragana_letter_u)
                                         'string)
                               :external-format :shiftjis))

#(130 160 130 162 130 164 0)
7

The following takes the above Shift-JIS result and converts it to EUC:

 > (string-to-octets
    (octets-to-string mb :external-format :shiftjis)
    :external-format :euc)

 #(164 162 164 164 164 166 0)
 7

The first value returned by string-to-octets is the octet array in EUC format. The second value is the number of octets generated including the null-terminating 0 which is added by string-to-octets (and not by the external-format).


3.3 External-Formats in 8-bit Lisp.

External-Formats are defined to convert octets to/from Lisp Unicode characters. Thus, they are only fully supported in the standard Allegro CL International (i.e., 16-bit) images, which are those using the 16-bit executable like mlisp and alisp. (On Windows, the executables have extension exe.) See Allegro CL Executables in startup.htm for information on the various images and executables.

But external-formats are also available, in a limited way, in non-international (i.e., 8-bit) Lisps (those using the 8-bit executable like mlisp8 and alisp8).

Their usage is limited because it is an error in an 8-bit Lisp to create a Lisp character with a code exceeding 255. For example, one cannot use an external-format to create a Unicode Japanese Lisp character in an 8-bit Lisp. One can safely, however, use the latin-1 external-format in an 8-bit Lisp (which is, in fact, the default external-format in an 8-bit Lisp) without any problems because it never creates a character with code exceeding 255. Multi-Byte external-formats, such as utf-8, can also be used, but only for characters whose char-code does not exceed 255. Furthermore, the :crlf composing external-format can also be used (and is, in fact, used on Windows platforms) because it only deals with ASCII character codes.

As described in the earlier section on Unicode in this document, a non-Latin1 8-bit character is represented in an 8-bit Lisp with its character code being its native 8-bit (non-Unicode) encoding. In other words, no conversion between octets and Lisp character char-codes is meant to take place. This is, in fact, exactly how the Allegro CL latin1 external-format operates. The latin1 external-format is in effect a pass-through convertor. Thus, even if an 8-bit Lisp application knowingly handles non-Latin1 Lisp characters, there is generally no need to specify an external-format other than the default, latin1, external-format.


3.4 Older Allegro CL External-Format Compatibility

The variable *default-external-format* is no longer supported. Users should either to bind a locale to *locale* (see Section 5.0 External formats and locales) or to directly specify the desired external-formats when calling functions that take the external-format argument (e.g., with-native-string, string-to-octets, octets-to-string, etc.) The externalformat argument, if unspecified, defaults to (find-external-format *locale*). When find-external-format is invoked with :default, the returned external-format will be that stored in *locale*.



4.0 Foreign-Functions

In C, the 'char' type is equivalent to an 8-bit byte. A C string is represented as an array of 8-bit bytes terminated by the null (or 0) byte. Therefore, a C routine expecting a 'char *' argument may expect a null-terminated 8-bit character array (i.e., string) in this format.

The Allegro CL Foreign-Function Interface allows users/programmers to pass Lisp strings to C routines expecting 'char *' arguments. Since Allegro CL internally null-terminates lisp string objects, passing a lisp string to a foreign function simply means internally passing the address to the first character of the lisp string's array.

The previous Allegro CL string-passing mechanism described above breaks down in the International version since the internal character codes of the lisp string's array are in Unicode, and non-ASCII characters may not match the codes in the locale's native (or external) format. Furthermore, even for ASCII-only strings, a 'char *' argument expects its value to be in a format where ASCII characters are 1-byte per character. International Allegro CL represents all characters, including ASCII characters, as 2-bytes per character. The upper byte of each ASCII character is always zero. Therefore, even if a user wishes to pass an ASCII-only string from Allegro to a foreign function, the foreign function will most likely treat the string argument as truncated since the first upper (all-zero) byte will be regarded as the string terminator.

One solution offered to this problem was to provide a macro, called with-native-string, to be used around all foreign-function calls that pass strings. This macro is used to convert string arguments to native format using a dynamic-extent array of 8-bit bytes.

Even with the with-native-string solution, users porting foreign function code from earlier releases of Allegro CL to International Allegro CL would have to manually hunt down every string-passing foreign function call in order to wrap those calls with with-native-string.

In order to save users from this burden, Allegro CL has a keyword argument :strings-convert to def-foreign-call. The default value of this argument is true.

def-foreign-call creates a low-level function that actually calls out to the foreign code. When :strings-convert is true, arguments declared directly or indirectly as (* :char) at def-foreign-call time are handled specially. The low-level function is augmented so that for each (* :char) declared argument, a check is made at runtime to see if that declaration's corresponding value is a string. If it is, then that value is converted at runtime to native-string format using a dynamic-extent array, and this new array is passed in place of the original string argument to the foreign function call.

Since this runtime search for string arguments only happens for those arguments declared directly or indirectly as (* :char), no new code is introduced for foreign functions not expecting strings. Consequently, no checking is introduced if the arguments are specified as a &rest list.

Suppose we have a C function which takes two input string arguments and one output string argument defined as follows:

 /*
  * concatenates first two arguments,
  * returns result in third output argument.
  */
 char *
 myconcat(char *st1, char *st2, char *retval)
 {
     int st1len = strlen(st1);
     int st2len = strlen(st2);
     int i;

     for (i = 0; i < st1len; i++) {
	 retval[i] = st1[i];
     }
     for (i = 0; i < st2len; i++) {
	 retval[st1len + i] = st2[i];
     }
     retval[st1len + st2len] = '\0';
     return retval;
 }

To call this function from Allegro CL using the foreign function interface, one can define the Lisp foreign function as follows:

(ff:def-foreign-call myconcat ((st1 (* :char))
                               (st2 (* :char))
                               (result (* :char)
                                       (vector (unsigned-byte 8))))
      :returning :int)

Evaluating the above form causes the following warnings (of condition type ff:strings-convert-def-warning) to be signaled:

 Warning: A runtime with-native-string call is being generated for argument
	  `st1' to the foreign-function `myconcat'.  The with-native-string
	  macro can be used for explicit string conversions around the foreign
	  calls.  This warning is suppressed when :strings-convert is specified
	  as nil in the def-foreign-call.
 Warning: A runtime with-native-string call is being generated for argument
	  `st2' to the foreign-function `myconcat'.  The with-native-string
	  macro can be used for explicit string conversions around the foreign
	  calls.  This warning is suppressed when :strings-convert is specified
	  as nil in the def-foreign-call.
 Warning: While defining `myconcat': Automatic string conversion suppressed for
 	  argument `(result (* :char) (vector (unsigned-byte 8)))' since a lisp
 	  type is specified.  The with-native-string macro can be used for
 	  explicit string conversions around the foreign calls.  This warning
 	  is suppressed when :strings-convert is specified as nil in the
 	  def-foreign-call.

Disregarding the warnings for the moment, and continuing on to use the just-defined foreign function, note that we can call it with lisp string arguments:

user(22): (let ((x (make-array 500 :element-type '(unsigned-byte 8))))
             (myconcat "abc" "def" x)
             (octets-to-string x))
"abcdef"
6
6

The returned value, "abcdef", which is the concatenation of the first two arguments (performed by the C foreign function) is correctly returned.

To turn the example above into one which (a) doesn't generate the warnings, and (b) generates faster runtime code since string conversion checking will be suppressed, one can set the strings-convert keyword argument to false as follows:

(ff:def-foreign-call myconcat ((st1 (* :char))
                               (st2 (* :char))
                               (result (* :void)))
     :strings-convert nil
     :returning :int)

By specifying :strings-convert to nil, the foreign-function interface will not automatically convert string arguments. Thus, to call the foreign-function defined this way, one needs to pass converted string arguments as follows:

user(23): (let ((x (make-array 500 :element-type '(unsigned-byte 8))))
             (with-native-string (st1 "abc")
               (with-native-string (st2 "xyz")
                 (myconcat st1 st2 x)))
             (octets-to-string x))
"abcxyz"
6
6

It is instructive to note what happens when :strings-convert is nil, yet the string arguments are not converted:

user(24): (let ((x (make-array 500 :element-type '(unsigned-byte 8))))
             (myconcat "abc" "def" x)
             (octets-to-string x))
"ad"
2
2

The result is the first character of the first string concatenated with the first character of the second string. The reason this happens is that the C foreign function sees the unconverted arguments as Unicode strings with each element being two octets wide. To the C function, each argument appears as the first octet being an ASCII character, and the second octet being a string NULL terminator.

Note that on big-endian platforms, the result of the above form is "" (i.e., the empty string). That's because the Unicode Ascii values have zero in their upper-bytes, and any array of Unicode Ascii values appear to C routines as being zero-length null-terminated strings.

Note that neither setting of the strings-convert keyword argument affects foreign function return results or "output" variables. Users with foreign function code that expects to "fill in" Lisp strings directly will need to modify those calls to pass octet arrays and do conversions, e.g., with octets-to-string as shown above for the example's third argument.



5.0 External formats and locales

As described in the section Section 5.1 The initial locale when Allegro CL starts up, the global variable *locale* is bound to a locale object. The value of *locale* is treated as the current locale.

The Windows and UNIX Operating Systems define a locale environment for each running program. The OS definition of locale describes date/time formats, currency printing formats, and sort ordering information in addition to character type information.

*locale* is used to determine the default external-format (see example just below). The external-format used in the default Lisp locale object is derived from the encoding.

Here is an example showing how changing the locale changes the external-format.:

cl-user(47): (dolist (x (list (find-locale "C")
			      (find-locale "japan.EUC")))
	       (let ((*locale* x))
		 (format t "~&*locale*=~s;~%default external-format=~s~2%"
			 *locale*
			 (find-external-format :default))))
*locale*=#<locale "C" (English/default) [:latin1-base] @ #x[...]>;
default external-format=#<external-format :latin1-base @ #x[...]>

*locale*=#<locale "japan" [:euc-base] @ #x[...]>;
default external-format=#<external-format :euc-base @ #x[...]>

See Section 5.1 The initial locale when Allegro CL starts up for information on how the initial locale (that is, the initial value of *locale*) is set.

The *locale* variable is analogous to the Common Lisp *package* variable in that rebinding the variable can affect basic Lisp functionality such as Input/Output.

The standardized convention for locale names is Name[_Territory][.Charset].

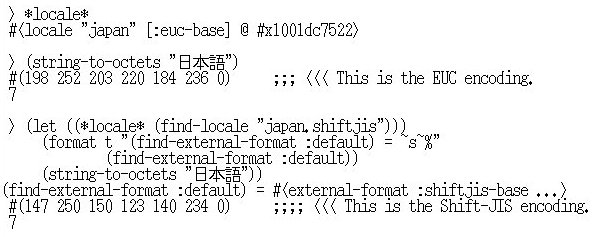

Suppose the following Lisp session were started in a Japanese locale using the EUC encoding. One can override the default external-format by dynamically changing the locale as follows:


5.1 The initial locale when Allegro CL starts up

The initial locale (that is, the initial value of *locale*) can be determined in various ways. Note that the variable is first set to a locale that (presumably) always exists. It is only reset if valid locales are determined from the additional steps.

Some examples from UNIX

% env ACL_LOCALE=japan.EUC mlisp
cl-user(1): *locale*
#<locale "japan" [:euc-base] @ #x404a02da>

% mlisp -locale cs_cz
cl-user(1): *locale*
#<locale "cs_CZ" [:iso8859-2-base] @ #x400f7a02>

% env ACL_LOCALE=japan.EUC ./lispi -I mlisp.dxl -locale cs_cz
cl-user(1): *locale*
#<locale "cs_CZ" [:iso8859-2-base] @ #x400f7a02>
cl-user(2):

On UNIX machines, you can determine the available locales with the locale -a shell command. A process' locale is often specified by setting the LANG environment variable, which often automatically sets several other variables including one named LC_CTYPE.


5.2 Locales in applications

If you are preparing an application for delivery to another computer (using generate-application), and the locale on the computer being delivered to is different from the locale on the computer generating the application, you must be sure the application can successfully change locales. The easiest way to ensure this is to specify the runtime-bundle keyword argument (to generate-application) true (this produces a runtime bundle file to be shipped with the application from which the locale-changing code can be loaded if needed).

If you know the specific locale on the target computer, you can call find-locale with that locale name (a string) as the argument during the image build (put such a form in a file and include that file as one of the list of files which is the value of the lisp-files argument to build-lisp-image or the input-files required argument to generate-application). But if you want to be ready for any locale, specify runtime-bundle true.



6.0 Localization support in Allegro CL

Localization is the process of modifying a program or application so that attributes specific to the location where the program or application is being run are used. Such attributes include such things as how dates are represented (day/month/year vs month/day/year) and the glyph for currency (e.g. $ meaning United States dollars) and whether the symbol appears before or after the amount.

This section and its subsections describe localization support in Allegro CL.


6.1 Introduction to locales

A locale is a Lisp object which contains linguistic, cultural, and governmental rules and conventions. The Lisp locale concept is based on the C-based POSIX locale specification. At runtime, Lisp locales operate independently of any active POSIX locales except that at Lisp startup time, the initial default Lisp locale (stored in the variable *locale*) is set using the process' current POSIX locale setting.

A POSIX locale has attributes from several categories. The following list shows the major categories, including a brief overview description of how they are used by Allegro CL. Further details follow the list.

Other Categories

A locale may include other categories (e.g., for specifying postal address information, salutations, etc.). Allegro CL does not provide any particular support for such other categories except to retain their information in the locale object and make it available to user programs via locale-attribute.

The names and meanings of locale attributes are not given in this document. They are available from Operating System Documentation. On LINUX, man 5 locale. On other UNIX, man 4 locale, or man localedef provide the information. On Windows, the localeconv in the Run-Time Library Reference in the MSDN documentation has it.


6.2 Locale Definition

In Allegro CL, a locale is effectively a set of attribute/value pairs. These pairs are sectioned into categories as defined by POSIX. Each attribute name is unique in the locale. In other words, within a single locale, no category can specify an attribute with the same name as a different category's attribute (this requirement seems to be specified by POSIX). In addition to attribute/value pairs, a Lisp locale also holds slots containing (1) the locale's name, and (2) the locale's default external-format.

Lisp locales are defined in Lisp using load-localedef. The load-localedef function takes two arguments: A pathname and a localename. The default for the localename is the pathname's name field. The pathname names a localedef source file. Several localedef source files are included with Allegro CL. These definitions come from the IBM Universal Locales project. They can be found in the directory specified by *locales-dir*.

We do not document the format of a localedef file, although platform operating system documentation may be available. On Linux platforms, one can look at the man entries for locale(5) and localedef(1). The localedef file format is in ASCII, and is mostly self-descriptive in case a user wishes to make local customizations.

The localedef file does not include external-format information. After load-localedef parses the input file and creates the appropriate attribute/value pairings, the external-format is determined by looking to see if a charset is specified in the locale name (using the ".[charset]" specification). If the name does not specify the external-format, then Allegro CL uses a [language -> external-format] table which is kept in Lisp.

Locales are found with find-locale. The function find-locale takes a single string-designator argument, name, and returns the locale specified by name. Please see the documentation page of find-locale for information about how locales are returned and/or created based on its argument.

A locale is a class. Accessors to slots include locale-name and locale-external-format.

The function locale-attribute can be used to access an attribute of a locale.

The function merge-locale-categories enables users to create a locale object which combines all of a specified locale with categories from other existing locales. Such a locale is unnamed (i.e., its name slot is nil), and is never returned by find-locale.


6.3 Locale Attribute Accessors

A locale object holds the attributes conceptually in the same way as specified in the localedef file. As specified above, the locale-attribute function can be used to obtain the value of any attribute. However, since some of the attribute names and values are oriented to C programming, Allegro CL provides a more Lisp-appropriate interface to the attributes used in the localedef files. This alternate interface provides the following two features:

Note that attributes with multiple-values, such as for the list of abbreviated months, are specified in the localedef file using the semi-colon (`;') delimiter. When parsed by load-localedef, these values create Lisp lists. Also, string characters are represented using Unicode. For example, the `abmon' (abbreviated month names) category may be specified in a localedef as follows ('/' is the escape character):

 abmon       "<U004A><U0061><U006E>";"<U0046><U0065><U0062>";/
	     "<U004D><U0061><U0072>";"<U0041><U0070><U0072>";/
	     "<U004D><U0061><U0079>";"<U004A><U0075><U006E>";/
	     "<U004A><U0075><U006C>";"<U0041><U0075><U0067>";/
	     "<U0053><U0065><U0070>";"<U004F><U0063><U0074>";/
	     "<U004E><U006F><U0076>";"<U0044><U0065><U0063>"

The lisp value for the abmon slot in a corresponding Lisp locale would be as follows:

 (locale-attribute locale "abmon" :category "LC_TIME")

==>
("Jan" "Feb" "Mar" "Apr" "May" "Jun" "Jul" "Aug" "Sep" "Oct" "Nov" "Dec")

Note that, in particular, POSIX locales define LC_NUMERIC `grouping' and LC_MONETARY `mon_grouping' as strings. In Lisp, these categories are defined as lists, or, if the category has a single value, an integer. A -1 value in these grouping attributes corresponds to the POSIX CHAR_MAX specification.

These are pre-defined user-visible accessor definitions:



7.0 String collation with international characters

Allegro CL provides string comparison functions such as string< and string>. These functions operate by doing binary comparisons of their argument arrays using the char-code values of the characters in the arrays. The effect of these functions is to compute the lexicographic order of their argument strings based on the array element char-code (Unicode) values.

For English-only characters, Unicode order is alphabetic except that upper case characters have lower code value than lower case characters. Thus, one problem with simple string< comparisons, which may concern some users, is that any string beginning with an uppercase letter will always be ordered before any string beginning with a lowercase letter.

Another problem is that with accented, or unicode-combined characters, simple string< ordering causes all such characters to be ordered after all Ascii characters.

Further problems include that different cultures order the same letters differently; that in some languages characters may be combined to form a single letter (e.g., "ch" in Spanish); and other characters may be equivalent to two or more letters (e.g., the "ae" ligature).

To address these problems, Allegro CL supports tools which parse and utilize Unicode Collation Element Tables for string collation. The Unicode Organization has defined a default ordering. Allegro CL uses this ordering by default.

The collation ordering can be customized by creating and loading alternate unicode collation element tables into Lisp. (The current Default Unicode Collation Element Table is provided in the following data file: http://www.unicode.org/unicode/reports/tr10/allkeys.txt.) The tables themselves are Ascii files. Their format is not documented here, but is described in the Unicode Technical Standard #10. Links to versions of that document are given in Appendix D Links to Unicode Reports. The parse-ucet function can be used to load one or more collation element tables into Lisp (which will be in addition to the one already present for default Unicode collation behavior). The parse-ucet function creates a Lisp ucet (Unicode Collation Element Table) object.

The function string-sort-key takes as arguments a string and a ucet object (as well as additional arguments). The function returns a string. The main property of string-sort-key's return value is that it can be used as an ordering key for string< or string>. In other words, if string A is to be collated before string B relative to the table which is the value of ucet, then

(string< (string-sort-key A :ucet ucet) (string-sort-key B :ucet ucet))

is true.

If the :ucet argument is not specified, (string-sort-key A) returns a sort key relative to the Default Unicode Collation Element Table, already present in Lisp. Because this default Lisp ucet object already exists for Allegro CL, and there is thus no need to use parse-ucet for default Unicode collation behavior; it is only needed when you wish to define your own collation.



8.0 Earlier International Allegro CL Compatibility


8.1 EUC Module

In previous releases of International Allegro CL for UNIX, EUC was the only supported external-format, and a special internal format known as 'process-code' was used. Some user-visible euc-specific functionality was added to the Lisp when International Allegro CL was first created in Release 6.2 on UNIX. This functionality, which mostly consists of character type definitions listed below, is moved into a special module no longer built into Allegro CL. This way, backward compatibility can be achieved by loading this module using (require :euc).

The following symbols name type specifiers which correspond to their named EUC codesets in the deprecated functionality for the EUC external-format. These remain defined for backward compatibility.


8.2 :mode Option Removal

Because of incompatibilities between the UNIX and Windows Operating Systems with respect to textual line termination, a special keyword argument, :mode was added to the cl:open function. This flag determined whether a stream would read one or two characters when a text line was terminated. With #\newline handling integrated into external-formats, this flag is no longer needed. A warning is signaled if this flag is used. See also Appendix B #\newline Discussion.



Appendix A: Functions, Symbols, Variables Documentation

Individual operators, variables, etc. are documented on their own pages, as is standard in Allegro CL documentation. In this section, we provide a list of the operators, variables, etc. with brief descriptions and links to the documentation pages.


Appendix A.1 External-Format API

The following two functions are named by unexported symbols. We document them because the sources for Allegro CL external-formats will be made available to users and these functions and trie data structures are referenced in the sources. The symbols naming these functions are kept internal in the Allegro CL packages to indicate that their associated functions are subject to change.


build-trie

Function

Package: excl

Arguments: &key name list index-key value-key optimize

name should be a symbol. list should be a list of index/value pairs. index-key, and value-key should be designators of functions of one argument (symbols or function specs, or function objects). optimize should be a boolean.

The symbol naming this function is not exported.  excl::build-trie builds a trie data structure consisting of the data from list. A trie data structure holds index/value pairs where most of the values are the same default value. The trie structure does not store these default values for each index, thus saving space and making lookup more efficient. It is not necessary for users to know details of trie data structures.

The list argument names a list of index/value pairs for the trie. The index-key is a function which when applied to a pair returns the index of the pair. The value-key is a function which when applied to a pair returns the value of the pair.

If the optimize argument is true, then any rows in the resulting trie that would be equalp to any rows in any of the tries returned by excl::all-tries are shared. The result is that all equalp rows of all existing tries which are equalp become eq.

Examples:

[*package* is the excl package for these examples]

(let ((jis-to-unicode-list '((#x2121 . #x3000)
			      [...]
			     (#x2124 . #xff0c)
			      [...])))
  (build-trie :name :jis-to-unicode
	      :list jis-to-unicode-list
	      :index-key #'car
	      :value-key #'cdr)
  (build-trie :name :unicode-to-jis
	      :list jis-to-unicode-list
	      :index-key #'cdr
	      :value-key #'car))

(let ((unicode-to-jis-trie
       (cadr (member :unicode-to-jis (excl::all-tries)))))
  (write (aref (aref unicode-to-jis-trie
		     (ldb (byte 8 8) #x3000))
	       (ldb (byte 8 0) #x3000))
	 :base 16))
  ==> [prints 2121]


all-tries

Function

Package: excl

Arguments:

The symbol naming this function is not exported.  excl::all-tries returns a list of all tries built by excl::build-trie. The returned list is in plist format: (trie-name1 trie1 trie-name2 trie2 ...).




Appendix B: #\newline Discussion

ANSI Common Lisp specifies that the single character #\newline denotes the end of a character text line. This requirement is complicated by the lack of a uniform convention among Operating Systems regarding textual line endings. To end a line, UNIX based applications generally uses Ascii 10; Macintosh based, Ascii 13; and Windows based applications use two Ascii characters: 13 followed by 10.

To confuse things further, Common Lisp implementations also differ on which Ascii character code is used for #\newline. Some use 13, others use 10. Some Common Lisp implementations may have disregarded the ANSI requirement that a single newline character be returned at the ends of lines, and for Windows, where two character bytes denote line endings, return more than one character at the end of a line.

Allegro CL has an external-format processing mechanism for handling character I/O. Using this mechanism, developed initially for multi-byte international characters, several adjacent external bytes may translate to a single Common Lisp character. A natural use of this mechanism is to map external end-of-line markers to/from the single Common Lisp #\newline character. The function eol-convention specifies what a #\newline translates to in a stream.

Specifically, for Windows the newline processing is handled using a composing external-format. The exact description is as follows:

Standard Translation:
---------------------

Characters -> External Octets:

 Lisp Character                         External Octet Sequence
 --------------                         -----------------------

  #\return  ----------------------------->  13
  #\newline [eq #\linefeed]  ------------>  13 10

External Octets -> Characters:

 External Octet Sequence               Lisp Character
 -----------------------               --------------

  13 10  ------------------------------->  #\newline [eq #\linefeed]
  13  ---------------------------------->  #\return
  10  ---------------------------------->  #\linefeed [eq #\newline]

One effect of this translation is that since #\linefeed is the same as #\newline, '#\return #\linefeed' translates to '13 13 10'. This scenario is only likely to be noticed if a program deliberately inserts the '#\return #\linefeed' sequence into a string that is to be converted to external format.

A fix for this situation is for the user/programmer simply to use '#\newline' instead of the '#\return #\linefeed' sequence. For users/programmers not immediately able to make this change, a compatibility mode exists in the form of an alternate composing external-format which translates as follows:

Compatibility Translation:
--------------------------

Characters -> External Octets:

 Lisp Character Sequence                           External Octet Sequence
 -----------------------                           -----------------------

  [ADD] #\return #\linefeed [eq #\newline]  ----->  13 10

  #\return  ------------------------------------->  13
  #\newline [eq #\linefeed]  -------------------->  13 10

External Octets -> Characters:

 External Octet Sequence               Lisp Character Sequence
 -----------------------               -----------------------

  [ADD] 13 13 10  ---------------------->  #\return #\return #\linefeed

  13 10  ------------------------------->  #\newline [eq #\linefeed]
  13  ---------------------------------->  #\return
  10  ---------------------------------->  #\linefeed [eq #\newline]

Note that the new rules allow the external octet sequence '13 13 10' to be preserved after undergoing a round-trip conversion via Lisp characters.

Use of the compatibility mode is only supported at lisp startup time via a new -compat-crlf command-line argument (see Command line arguments in startup.htm).



Appendix C: 8-bit images

Standard Allegro CL supports international characters and uses two bytes (16 bits total) for each character. 8-bit characters are not supported in standard Allegro CL. However, 8-bit versions of Allegro CL are supplied. The 8-bit executables have `8' in their names (mlisp8, etc.) While most users will likely use the standard version, some (particularly those who manipulate very large ASCII strings) may wish to use the 8-bit version. Note that the 8-bit version does not support 16-bit strings or characters and fasl files are incompatible between the two versions.



Appendix D: Links to Unicode Reports

The Unicode technical reports vary slightly with each new release of the Unicode Standard. At the time of this writing, the variations have not mattered to Allegro CL, but to avoid possible confusion, we provide two links for UTS #10: Unicode Collation Algorithm (hereafter, TR 10):


Copyright (c) 1998-2009, Franz Inc. Oakland, CA., USA. All rights reserved.
Documentation for Allegro CL version 8.1. has had minimal revisions compared to the 8.0 page.
Created 2007.4.30.

ToCDocOverviewCGDocRelNotesFAQIndexPermutedIndex
Allegro CL version 8.1
Minimally revised from 8.0. Minimal update since 8.1 release.
8.0 version
