Chapter 2. The Allegro CL Development Environment (IDE)

This chapter contains the following sections:

2.1 Opening Allegro CL
2.2 The startup sequence
2.3 The startup dialog
2.4 After startup
    2.4.1 The startup configuration
2.5 Putting components on a form
2.6 Modifying components on a form
2.7 Testing a form by running it
2.8 Specifying event handler behavior
2.9 Projects
2.10 Saving files
2.11 Getting help

This is chapter 2 of the User Guide for the Allegro CL 8.1 Integrated Development Environment (IDE). The IDE is only supported on Windows and on x86-based Linux with GTK.

The chapters of the IDE User Guide are:

Chapter 1: Introduction to the IDE
Chapter 2: The Allegro CL Development Environment (IDE) (this chapter)
Chapter 3: An example
Chapter 4: Projects
Chapter 5: Components
Chapter 6: Designing a user interface using forms
Chapter 7: Menus
Chapter 8: Events

2.1 Opening Allegro CL

Start Allegro CL with the IDE by choosing an appropriate item from the Allegro CL 8.1 menu item on the Start menu. The choices that start the IDE include:

If you do start Allegro CL without the IDE, you can start the IDE by evaluating the following two forms. The first loads IDE fasl files and the second starts it up:

(require :ide)
(ide:start-ide)

2.2 The startup sequence

When start-ide is called, it performs the following steps. (This is an abbreviated list providing highlights only. See About IDE Startup in doc/cgide.htm for a complete description of IDE startup.)

  1. If the Allegro CL image was started in batch mode (i.e. with the command-line argument -batch), start-ide exits immediately returning nil. (The IDE is an interactive interface and it does not make sense to run it in batch – non-interactive – mode.)
  2. The global variable *starting-ide* is set to t and the variable *ide-is-running* is set to nil. *starting-ide* will be t throughout IDE startup and set to nil when startup is complete, while *ide-is-running* is nil throughout startup and t when startup is complete. These variables allow the process that called cg:start-ide to know when startup is complete.It is recommended that the test be on *ide-is-running* rather than on *starting-ide*.
  3. Multiprocessing is started and the "IDE GUI" thread is initialized. The remainder of the startup procedure is done in this thread.
  4. The IDE system (encapsulated in the *ide-system* variable) is initialized.
  5. The various IDE windows are displayed and, if the IDE starts by opening a project, the appropriate project is opened.
  6. The "Listener 1" thread (used by the Debug window) is created.
  7. The file startup.cl (or startup.fasl) is loaded, if it exists in the Allegro directory.
  8. If the value of the variable *ide-startup-hook* is a list of function names or objects, they are funcall'ed with no arguments.
  9. The variable *starting-ide* is set to nil and the variable *ide-is-running* is set to t. IDE startup is complete.

After the initialization functions are called, the startup-dialog is displayed (unless it has been disabled).

2.3 The startup dialog

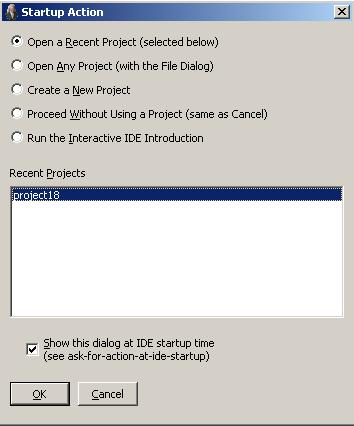

If you have worked on any projects, when you start the IDE in Allegro CL 8.1, you are shown the startup-dialog asking about projects: whether you want an existing project opened or a new project created or do not want a project opened. If there are no recent projects, the dialog does not appear so you will not see it the first time the Allegro CL 8.1 IDE is started.

You can arrange to have this dialog suppressed (with, for example, the check box near the bottom). If this dialog is not displayed, the IDE is started with no current project. You can at any time create a new project or open an existing one with File | New Project or File | Open Project.

If you choose Create a New Project (the third radio button down), you are asked to specify a project directory, where project files will be located. The very first time you do this, the Project Parent Directory dialog is displayed, allowing you to choose the parent directory for project directories. The default for the project parent directory is C:\allegro-projects. After the project parent directory is specified (it applied to all projects), then creating a new project causes this dialog to appear, asking for the project directory for the new project:


You can accept the default or specify a different directory. The project parent directory is stored in the preferences file returned by ide:options-path. If you delete that file, the next time you create a new project, you will be asked to specify a project parent directory first.

2.4 After startup

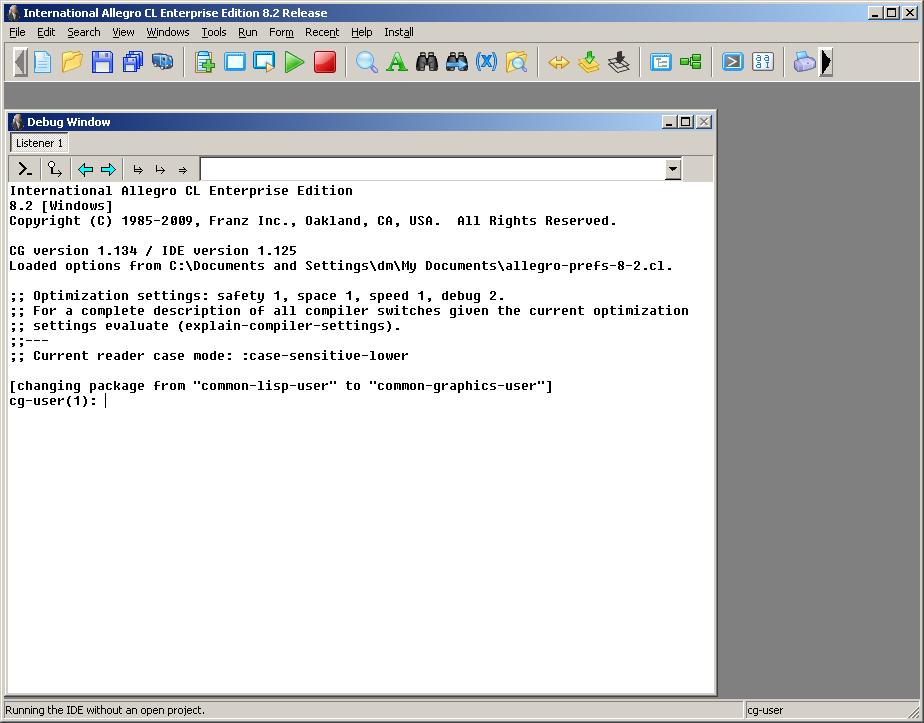

The figure shows the Allegro CL start-up state when no project is opened: just the Project Window (along the top) and the Debug Window:


We have trimmed the bottom. Along the bottom is a status bar (to the left) and a text -edit pane showing the current package (to the right:). The status bar shows the message when the cursor is over the Load icon (the pickup truck third from the left in the lower row of icons).


And here is the package indicator at the bottom right:


The Windows that are or that you might want to have visible include the following (most can be made visible with the View menu):

The Project window. The project window is always visible at the top of the screen. It has the menu bar and two toolbars. The standard toolbar, on the left side of the project window, has buttons for standard operations such as Open, New, Load, and Save. The Component toolbar takes up most of the lower right. (In the picture, it has scroll arrows because it has been made smaller. You will probably not see scroll arrows when you start the IDE.) The buttons correspond to available components that can be placed on forms while designing the user interface to your application.

An editor workbook (display with View | Editor). Each tab of the editor workbook is a separate file or unsaved editor buffer. When you open a new or existing file (by clicking New or Open on the File menu or using the equivalent toolbar buttons), an additional tab appears in the editor workbook for that file. When you view source code or take an action (such as specifying an event handler), the correct file is opened for editing in the editor workbook.

The debug window (visible on startup). The debug window is a Lisp listener with a prompt and can be used to evaluate Lisp expressions (useful to check the values of variables and to test functions, among other things). If there is an error, a backtrace and information about the error are displayed in this window.

The Project Manager. The Project Manager dialog displays information about the current project (there must be a current project in order for it to be displayed so it will not display until you open a project if you started Allegro CL without one). You can use this dialog to modify aspects of projects (add files, delete files, etc.) You might open a new project now with File | New Project.

The Inspector. The inspector displays properties, events and internals of any object on which the Tools | Inspect Selected Object command is used. When viewing the properties tab of the inspector, the property names are on the left and values are displayed on the right. A value can be set directly in the Inspector Window, with the new value having an immediate effect on the object being designed. Display an inspector with the View menu. Certain gestures (such as double-clicking over a form) display the inspector inspecting the object clicked over.

A blank form. A form is a design tool for designing the windows (of all types) that may appear when your application is run. Each form corresponds to a window in the application. You can add components to forms and then customize their display and behavior according to the needs of your application. A project must be open to display a form. With a project open, get a new form by choosing New Form on the File menu. The New Form dialog appears asking you to choose the class of the new form:


You might accept the default, which is dialog. The new form appears and is automatically added to the current project.

Along with the new form, named form1, an inspector window inspecting the form is opened. And an editor buffer named form1 has been opened and form1 is listed as a module in the project (look at the visible bit of the Project Manager).

Note on extending the toolbar on the Project Window

The set of commands that are included on the Standard Toolbar (on the lefthand side of the Project Window) may be customized. To do this, first expose the Extended Toolbar via the View | Extended Toolbar command. Then hold down the ALT key, left-click down on an icon in either the Standard Toolbar or the Extended Toolbar, drag it (while continuing to hold the mouse button down), and then release the mouse button to drop the icon on the other toolbar (or at another location on the same toolbar).

If not all of the icons fit into the current area of the Standard Toolbar, then its scroll buttons will be turned on and you won't see all of the commands at once; to remedy this, invoke the View | Toolbars command twice to toggle the Standard and Component Toolbars off and back on --- this will adjust the size of the Standard Toolbar to fit all of its icons without scrolling. The new set of icons will be saved in the preferences file (as the value of the standard-toolbar-icons property) whenever the configuration options are saved (typically at Lisp exit, to be restored in later Lisp sessions). Note that there is no provision to add or remove the vertical separator bars.

2.4.1 The startup configuration

The configuration (the arrangement of windows) and various choices options, like the editor mode, are stored in the preferences file whose location is returned by ide:ide:options-path  Many of these options may be modified by displaying the Options dialog (click Tools | Options). The preferences file is generated automatically when Allegro CL exits (unless Tools | Save Options on Exit is toggled off). You can write the preferences file at any time by choosing Tools | Save Options Now. If you want to get the original configuration, remove or rename preferences before starting Allegro CL. Note that preferences should not be edited by hand.

2.5 Putting components on a form

Applications typically display one or more windows (including dialogs) when run. These display information to the user and collect input from the user. You design these windows by placing components on a form while you are designing the interface.

Components that you can use while designing in a form are displayed on the Component Toolbar. It is on the Project Window, labeled Components:

To put a component on a form, click on the button corresponding to the desired component on the toolbar and then click or press the mouse button on the blank form. The component with default size will be placed where you click. Pressing the mouse button anchors one corner of the component on the form. If you release the mouse button at once, the component with default size is placed on the form. If you hold the mouse button down and move the mouse, a rubber band outline shows the proposed exterior of the component. Releasing the button places the component with the specified size and location.

Components on a form can be resized, moved, or deleted at will. As a component is moved, alignment cues appear when it is in alignment with other controls on the form. Components can also be copied by selecting and clicking Edit | Copy. Paste then places them on the same form or on another form (you cannot control the location of the paste but you can move the component as desired after pasting).

When a component is selected on a form, it can be resized as desired using the sizing handles (the little solid squares about the control). You can reposition the component by clicking inside the component but not on a sizing handle and dragging the mouse. Also, when a component has been selected, the Inspector displays information about the component. Many properties in an inspector window can be modified directly, and those modifications show up on the component on the form when the inspector is modified.

You can select more than one component: select one, then click on others while the shift key is down. Each selected component has hollow handles (rather than solid sizing handles). The components cannot be resized as a group but can be moved as a group, and the Inspector shows properties common to all selected components and change likewise affects them all. You can also use rectangular selection to select several components at once. Press the left button away from any component and move the mouse, which causes a rubber band box, anchored where the button was pressed, to be displayed. All components within the box or intersecting it when the button is released will be selected.

2.6 Modifying components on a form

When a component is selected on a form, it can be resized or moved with the mouse. In this example, the radio button is selected. Notice the small dark squares surrounding the radio button in the illustration. They are sizing handles. When the cursor moves over one of the solid sizing handles, it changes to one of the standard resizing cursors. If you click when the cursor is one of the resizing cursors, then you can resize the component.

As a component is moved or resized, alignment cues appear when appropriate to allow accurate alignment of the component with other components on the form.

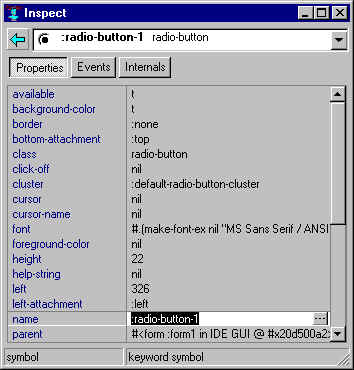

Changes other than moving or resizing can be made with the Inspector. When a component is selected, the Inspector displays information about the component. Here is the Inspector inspecting the radio button control from the illustration above:


The object being inspected is identified by name in the box just below the title (:radio-button-1 in the illustration). The box is a combo-box and previously inspected objects are shown in its drop-down menu. Choosing one changes the inspection to that object. Clicking the button to the left inspects the object inspected just before the current object. The buttons below, labeled Properties, Events, and Internals (those are the usual buttons for a component; other types of objects have different buttons), allow inspection of different aspects of an object. For a component, the properties mostly affect the appearance; the events name functions to be called when an event (mouse click, e.g.) happens to the component; and internals are features of the component that can be looked at but should not, in general, be changed.

The illustration shows the properties pane. Property names are listed on the left and values on the right. If an editable property value is selected (as name is in the illustration), the value can be changed, either by typing a new value directly or by clicking on the extended editor button to the right of the value slot. The extended editor button illustrated has three dots, indicating a text control will appear allowing input of a new name.

Other extended editors include a font choices dialog, a color choice dialog, the menu editor, and others. If the values are true and false only, the extended editor button will toggle between t and nil (button with a check mark, for example, the available property). If there are only a few values, it will display a list of all possible values.   For example, for the border property the button looks like a down arrow (not shown in above graphic).

Inappropriate values will not be accepted; for example, only a color or nil are appropriate for background-color and other values will be rejected. Certain properties are read-only and they cannot, of course, be modified.

Clicking on the name side causes the current value to be inspected. If you click over name in the illustration (value :radio-button-1), you see the inspection of that symbol.

2.7 Testing a form by running it

It is useful while using a form to design an application window to see what the window will look like and how it will behave when the application is run. Clicking Run | Run Form causes the window associated with the selected form to be created and displayed. Components are active and respond to the mouse. Look at the Window list (click on View | Window List). You will see two windows named form1 (or whatever you have named the selected form). One is the actual form (which you are designing) and the other is a window built from your design. (The running window exactly covers the design form so the fact that there are two windows is not immediately noticeable.) Clicking Run | Stop closes the running window (as you see if you update the Window List) and re-exposes the design form. Note that when we say `form' in this manual, we do not mean the running window corresponding to the form.

Clicking Run | Run Project invokes the Project Init Function in a separate thread. In the default, this function makes and displays the window associated with the main form of the project so only that window is run unless you have changed the Init Function. This does not matter if your project has only one window. If your project has several windows, Run | Run Form can be used to examine a specific window and Run | Run Project to test the application as a whole. (You have presumably either changed the Init Function or made other programmatic changes to cause the other windows to be displayed.)

2.8 Specifying event handler behavior

Events (mouse motions, mouse button clicks, keys pressed on the keyboard, and combinations of those things) are a common way for a user to communicate with an application. When a component is selected on a form, the Inspector window has an Events tab. Displaying this shows the event handlers associated with the component. The value of an event handler is either nil meaning there is no event handler to run or a symbol naming a function. The event handler function is called when the specified event occurs to the component in the running window. There is a simple example illustrating events and handlers at the beginning of chapter 8.

2.9 Projects

A project is a collection of modules used to build an application. The modules can be of various types, including application source files, forms, libraries (.dll files), and other projects. See chapter 4 Projects for more information on projects, on managing projects, and on the Project Manager window.

Each module is associated with one or more files and taken together with necessary pieces of Allegro CL itself, these files comprise the application. Tools are provided for testing an application and for preparing an application for delivery, again as described in chapter 4.

The Project Manager dialog, displayed by clicking View | Project Manager, is a visual display of the current state of a project, showing the modules associated with it, and the name and certain other options of the project. You can use the Project Manager to assist in managing the project and in testing and building the application associated with the project. This is the project manager for the final doodler project created by the doodler tutorial.

2.10 Saving files

When you are editing a file in the Editor, clicking File | Save (or using the Save toolbar button) saves the file to disk, prompting you if necessary for a filename. Save also saves the files associated with a form when clicked while a form is selected. Save All saves all editors with unsaved changes, all forms with unsaved changes and the project file if necessary. (When the Project Manager has focus, Save saves the project (.lpr) file.)

2.11 Getting help

There is online help. In many cases, pressing the F1 key displays help for the currently-selected symbol. If no appropriate page can be determined, a dialog is displayed saying that. A dialog is also displayed if the currently-selected symbol names more than one kind of object (a class and a function, for example). Help | Help on Selected Symbol is the same as pressing F1. When a dialog has focus, Help | Help on Selected Dialog displays the help page for the dialog if there is one.

Help | Tree of Knowledge displays an outline of the Common Graphics/IDE documentation with links to the various pages and files.

Other sources for help:

Go to chapter 3. Go to the beginning of this chapter.
